Magnetic Tape and Film Examples

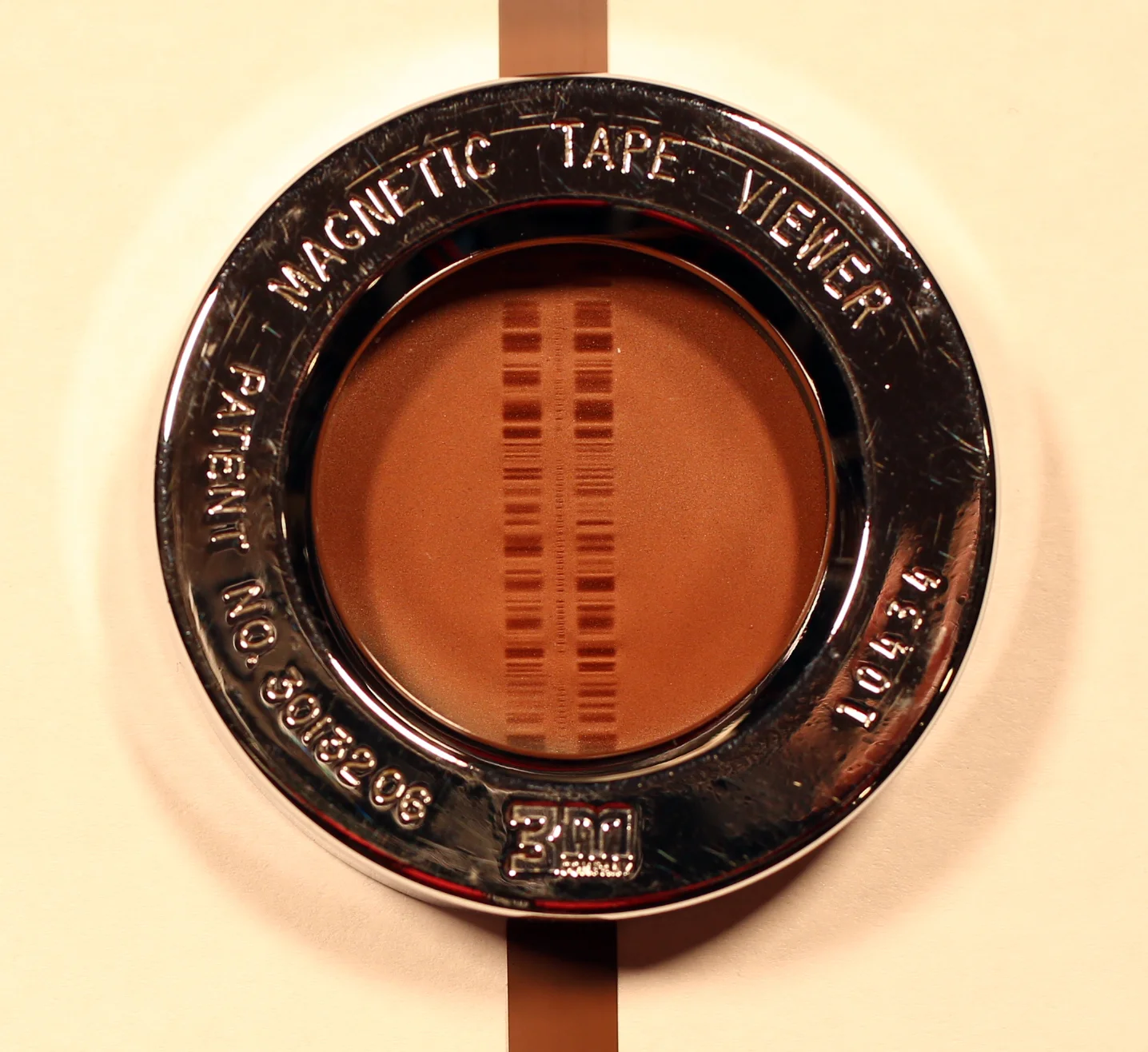

The commercial use of magnetic recording in America began in the late 1940s and quickly overtook disc and optical as the best studio recording format. Not only did magnetic recording offer improvements in sound quality, it also offered the ability to more easily edit sounds, combine sounds, and record for long periods. Magnetic tape is basically a smooth ribbon with a painted-on solution of iron filings. A magnetic recording head is able to orient these iron filings into sound modulation similar in appearance to the modulated light of a variable-density optical track. The modulation is invisable to the eye and requires a magnetic viewer as shown below. After recording, a separate playback head is able to transform the faint modulating magnetic field back into an electrical sound signal. This is the medium used to capture everything from The Beatles to The Sound of Music.

Select any image below to view larger size.

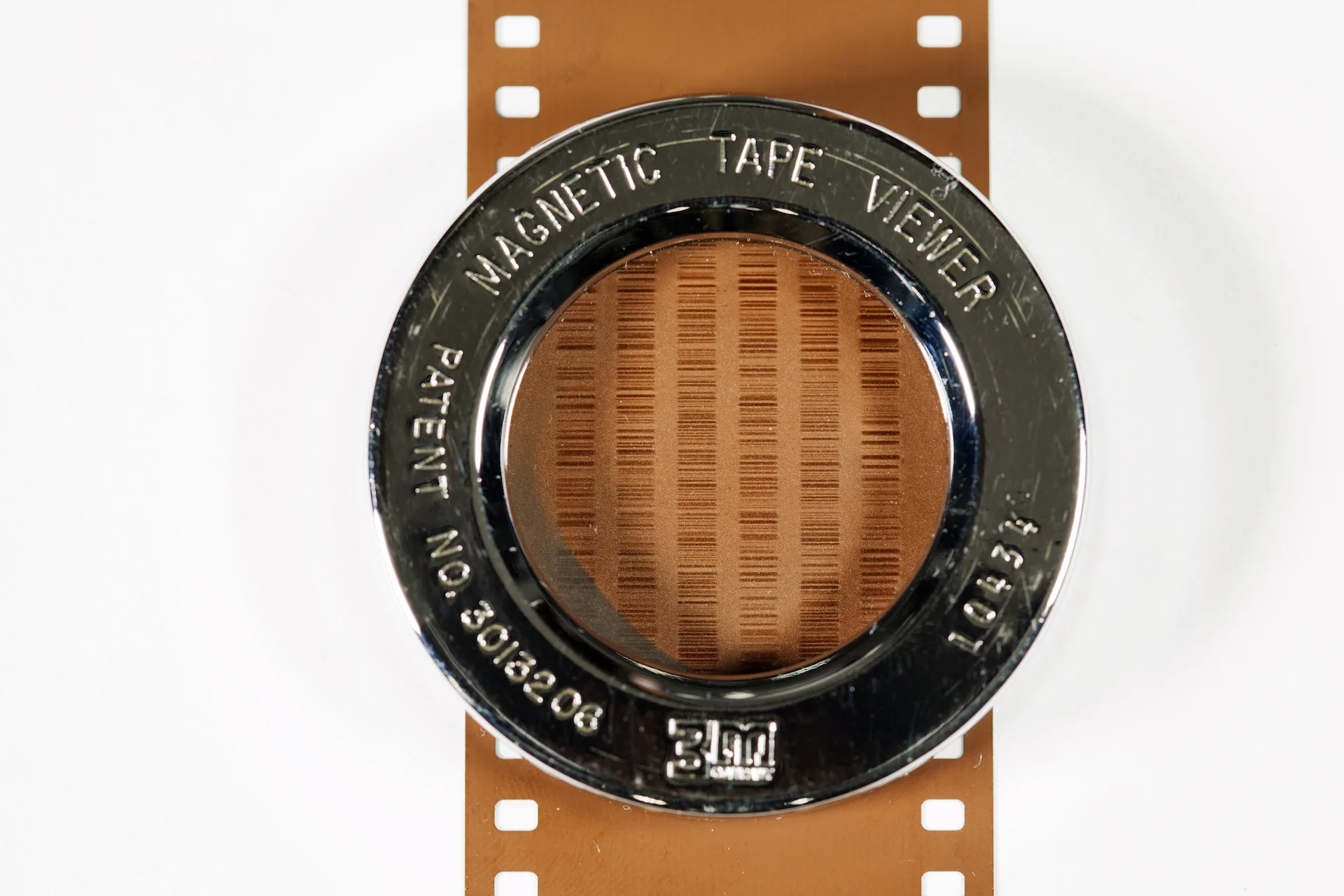

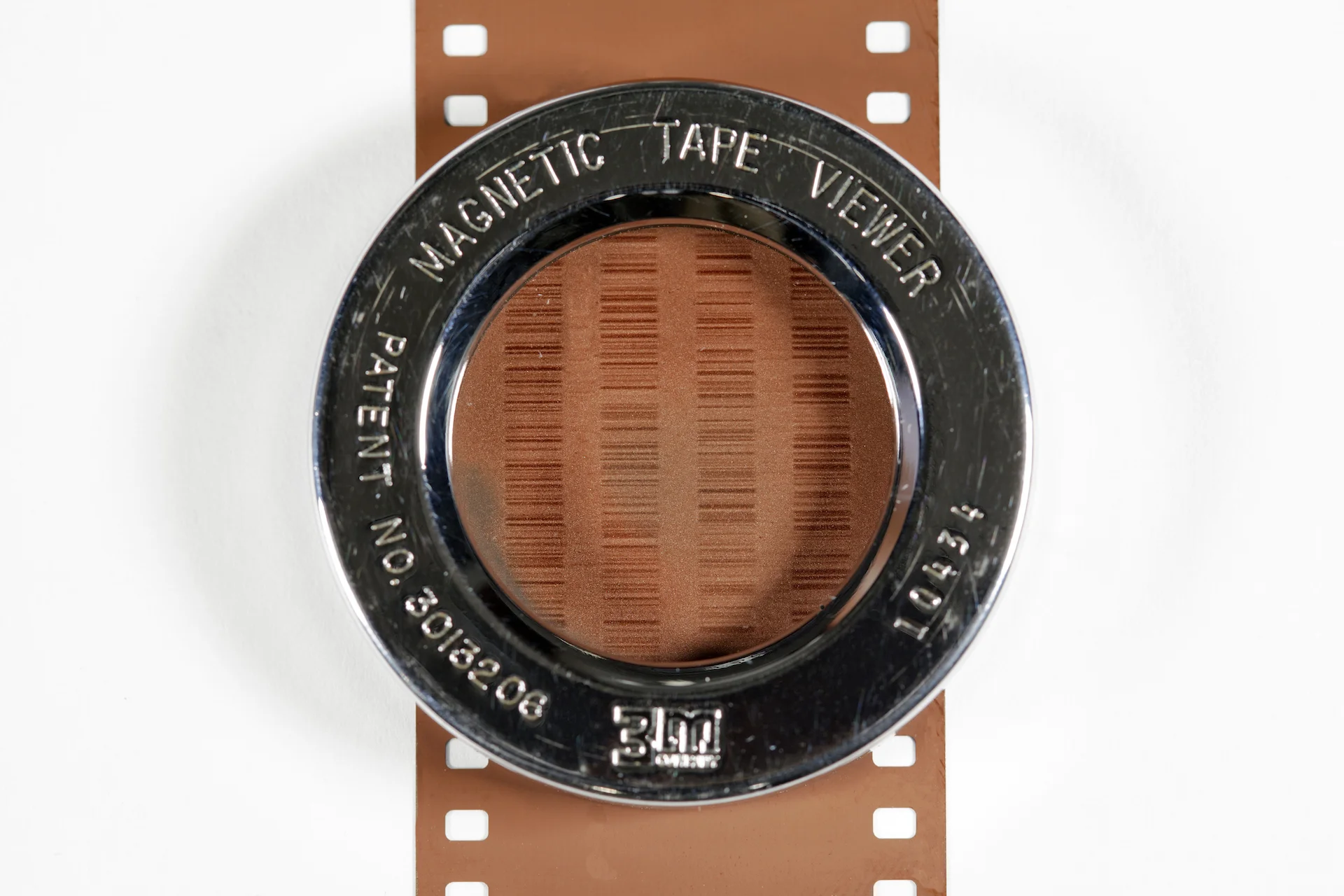

35mm

Stripe

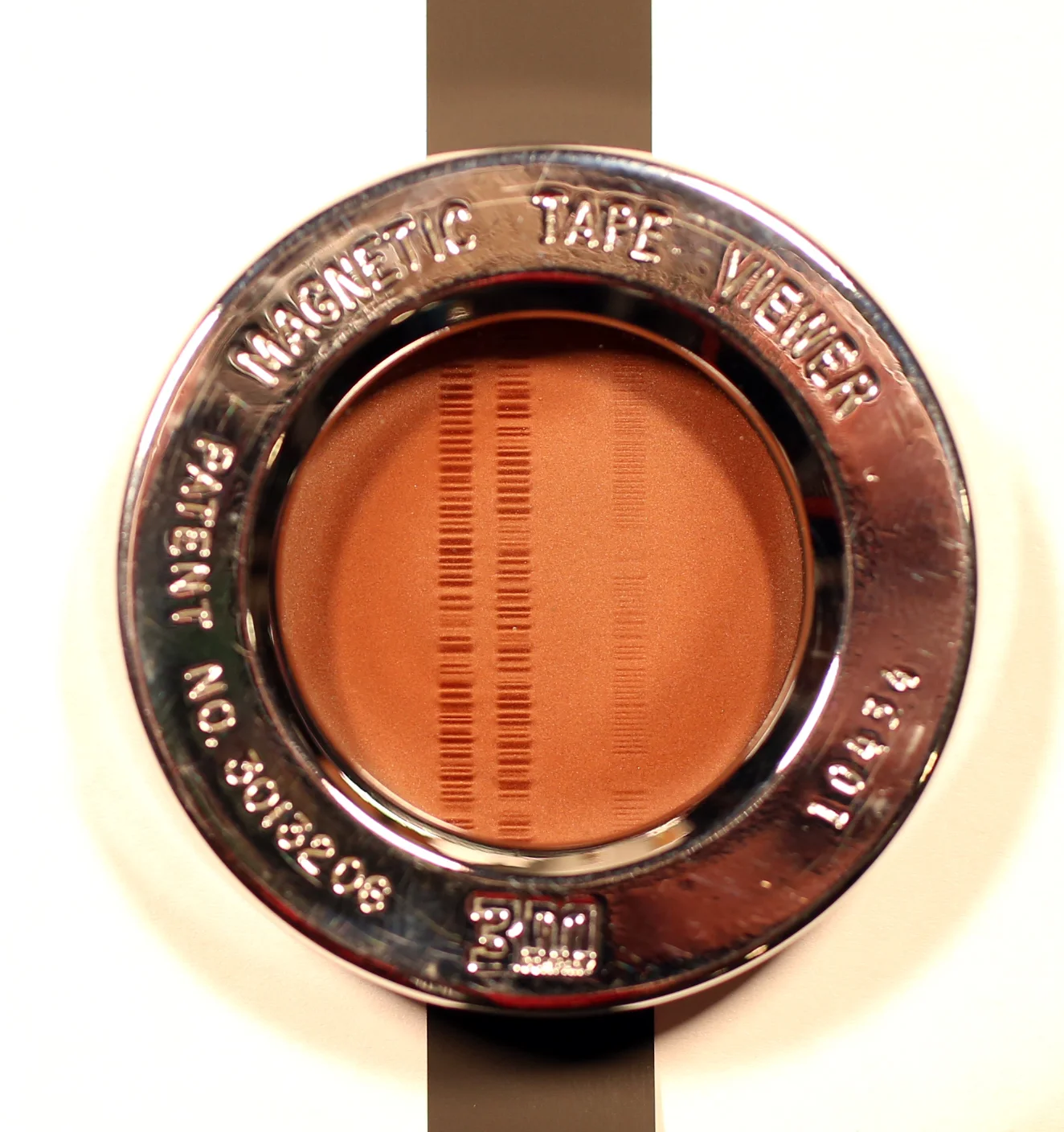

3-trk

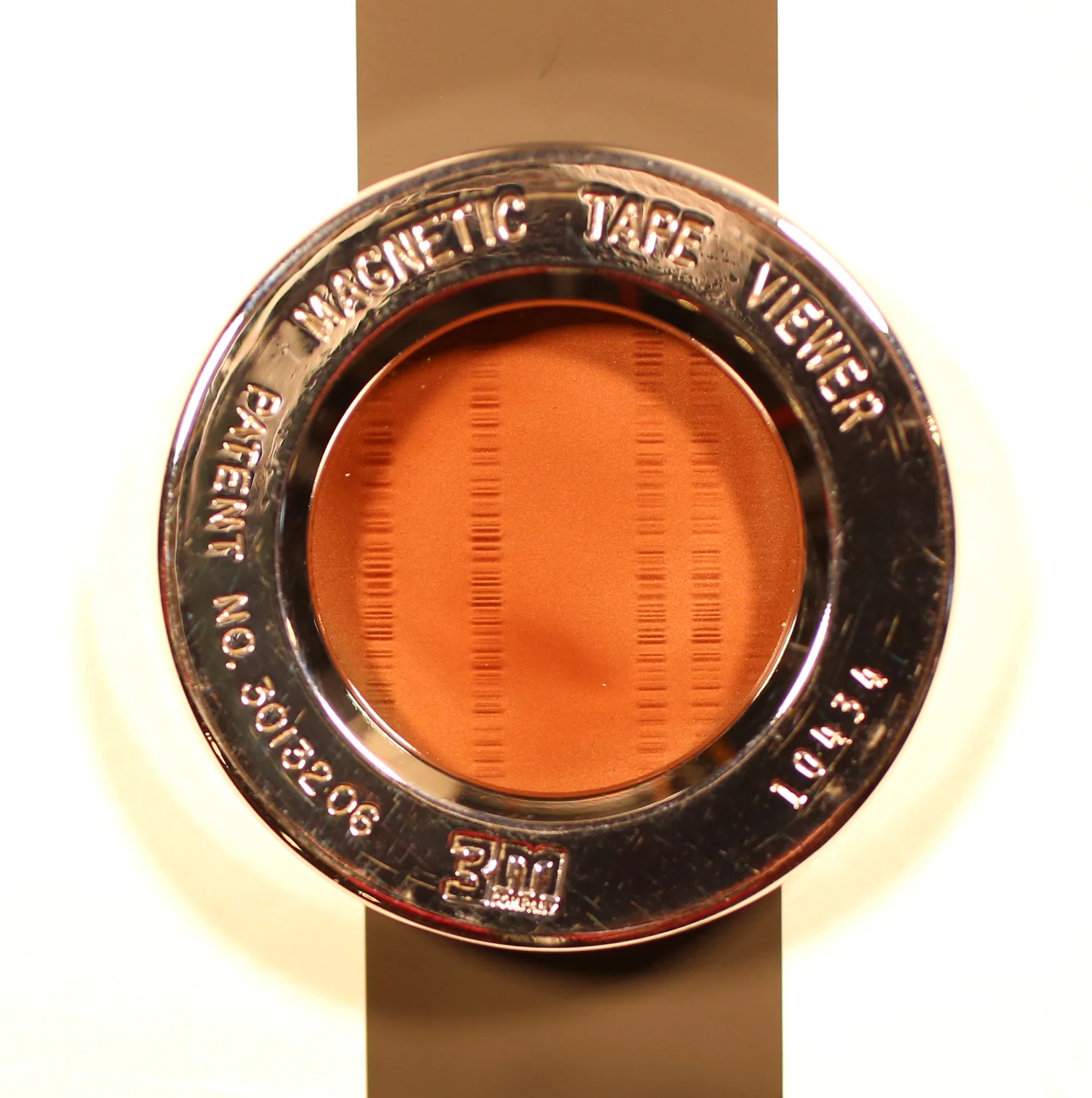

4-trk

6-trk



16mm

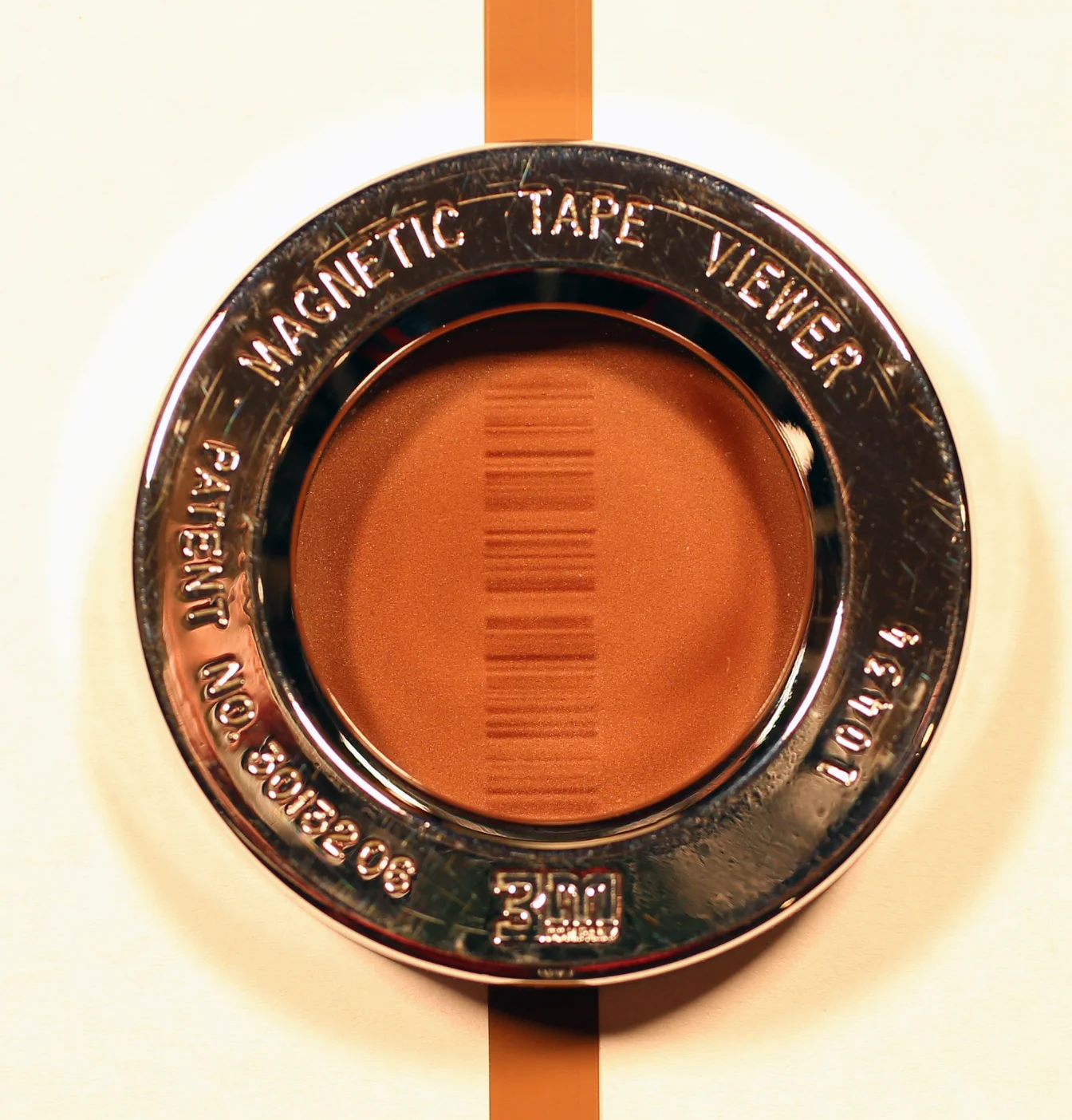

Edge

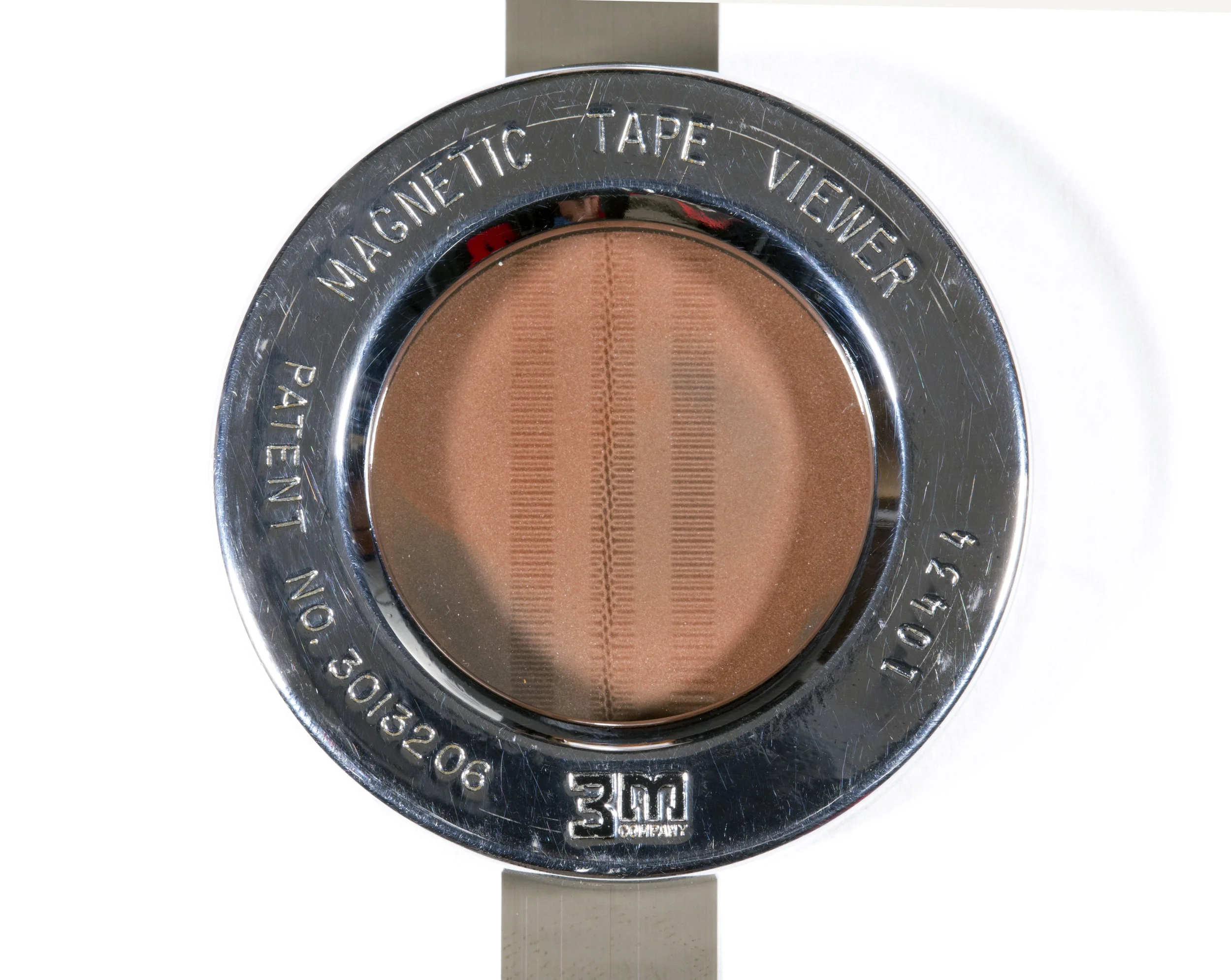

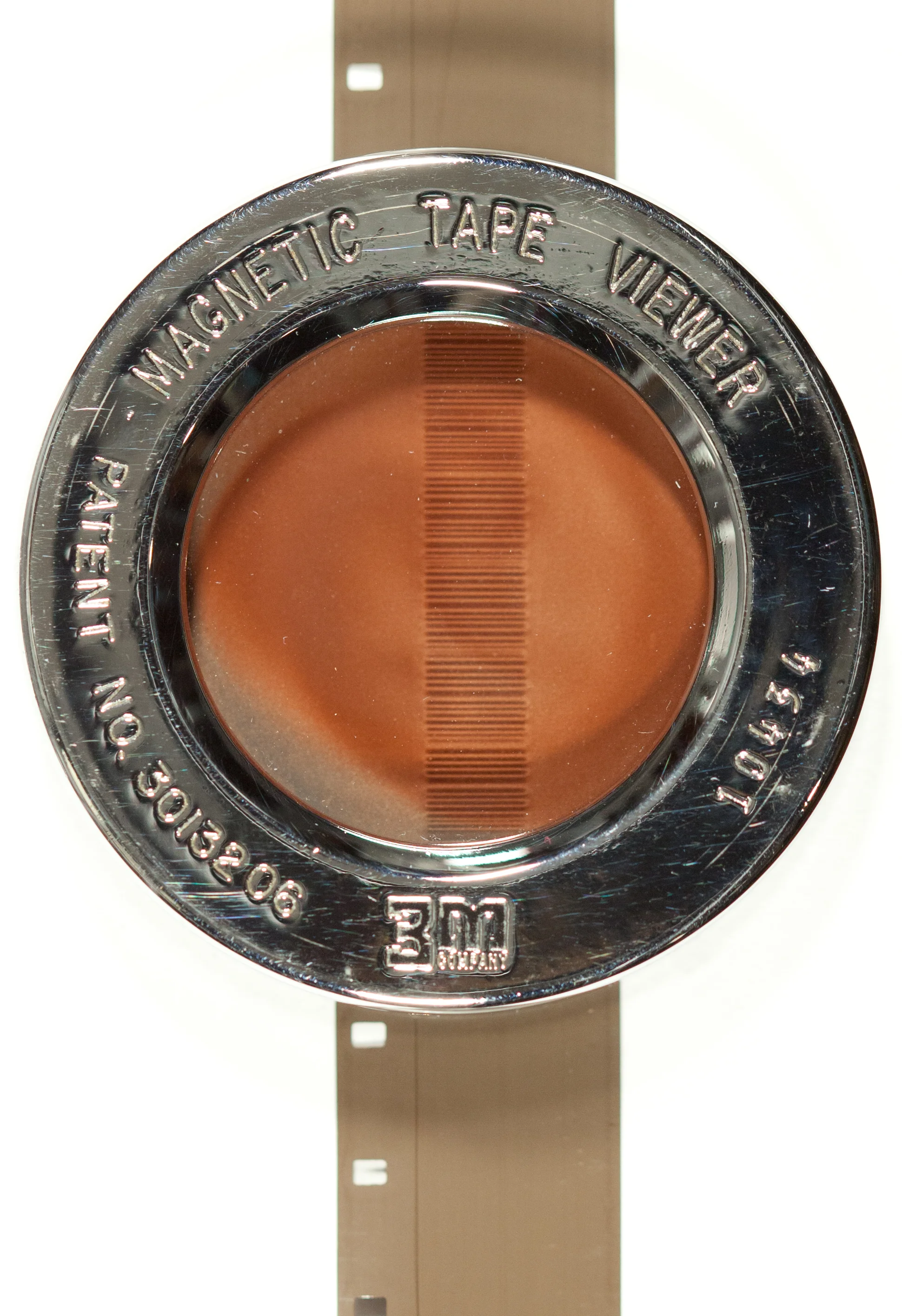

Center

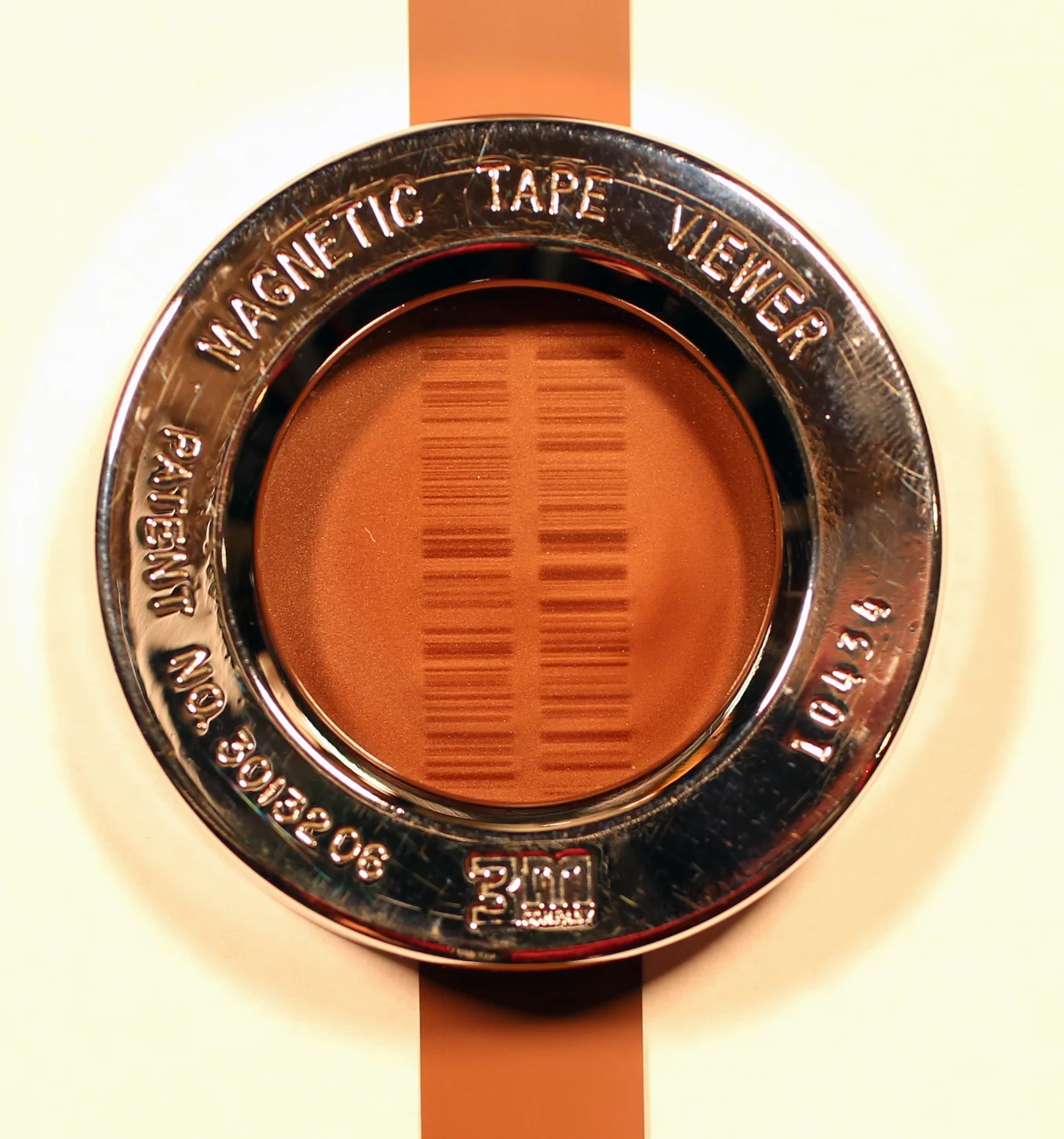

2-track



17.5mm

Center




Professional Magnetic Tape Formats

¼” full-track

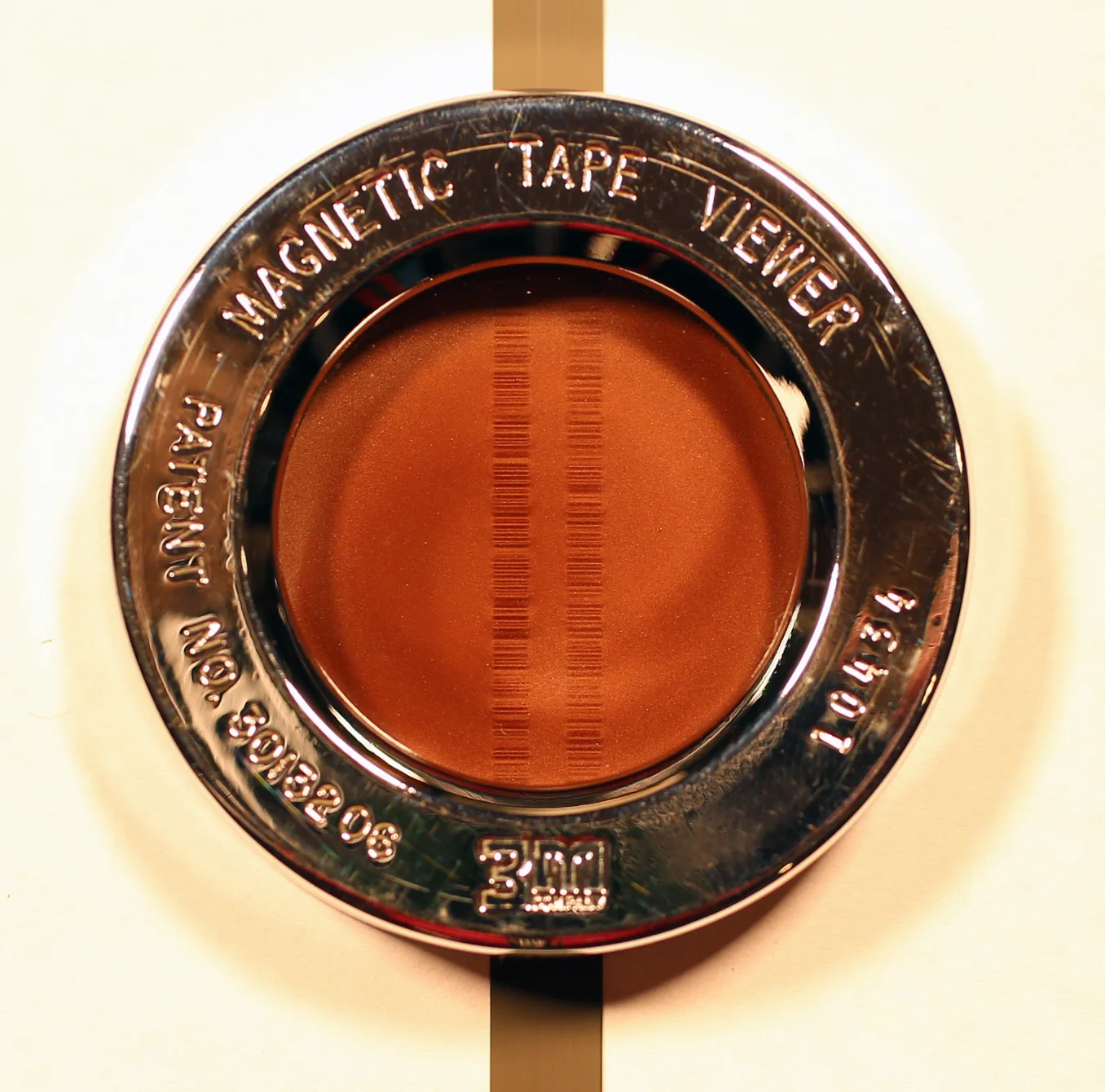

¼” 2-track

½” 2-track

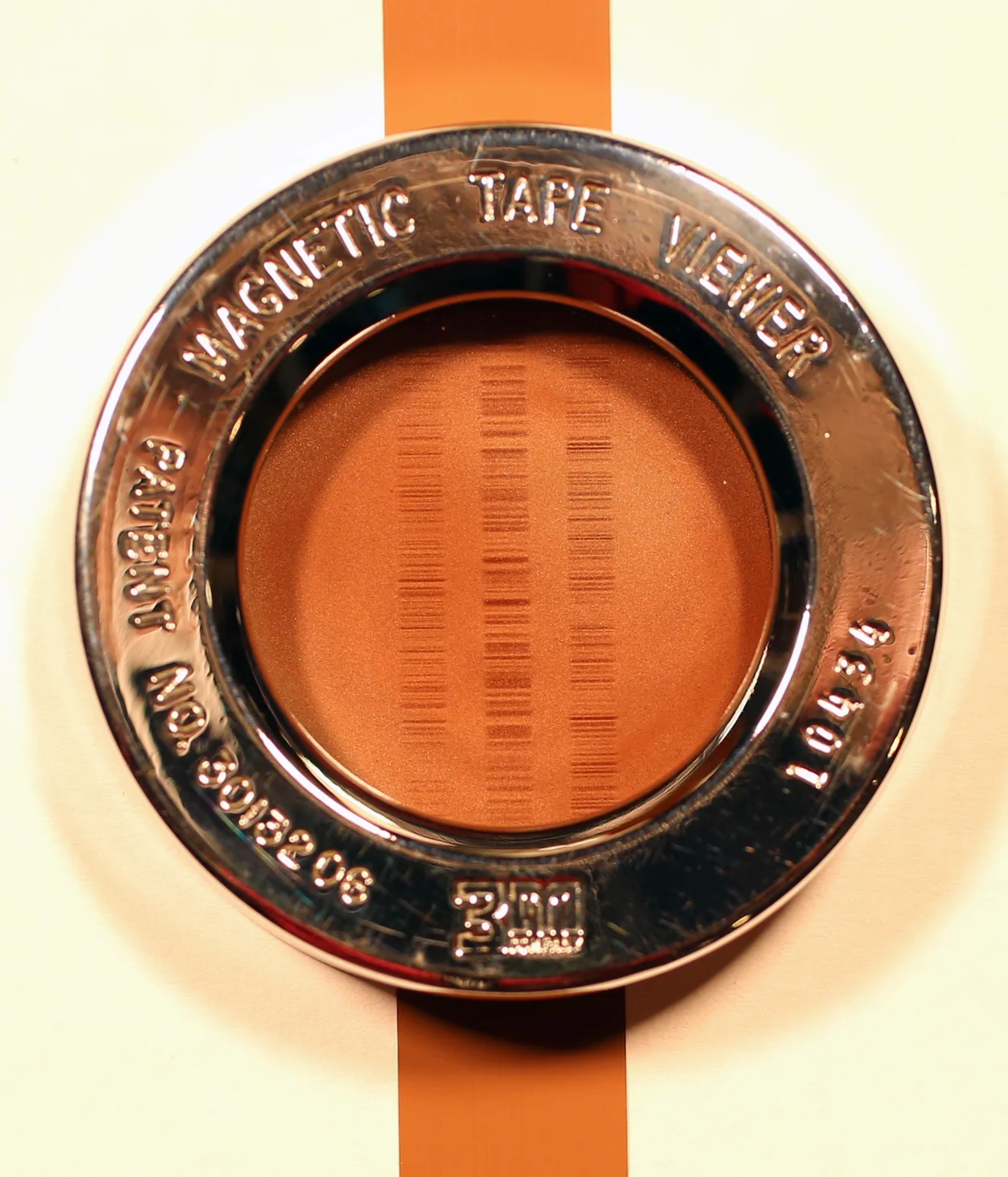

½” 3-track

½” 4-track

1” 8-track

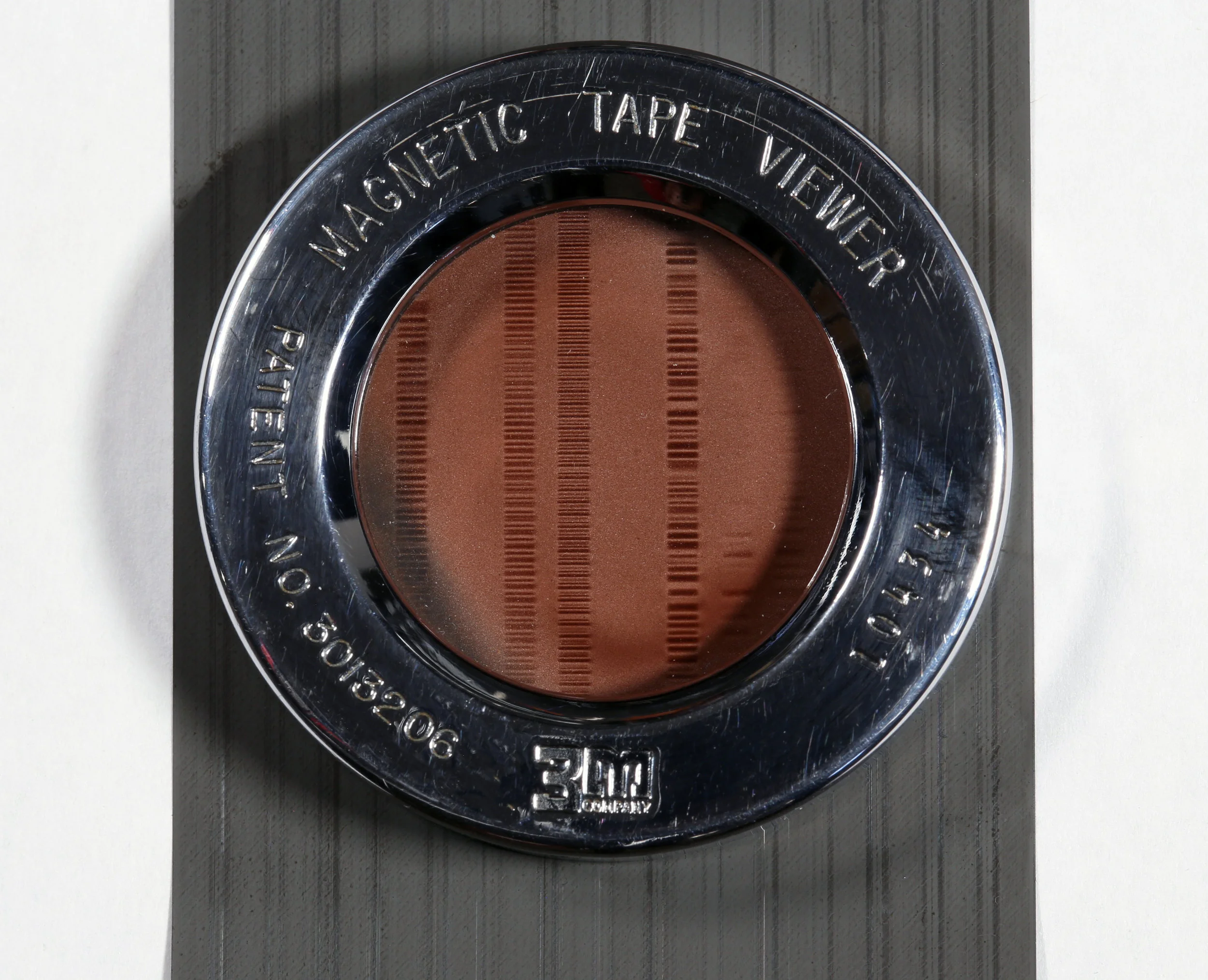

2” 16-track



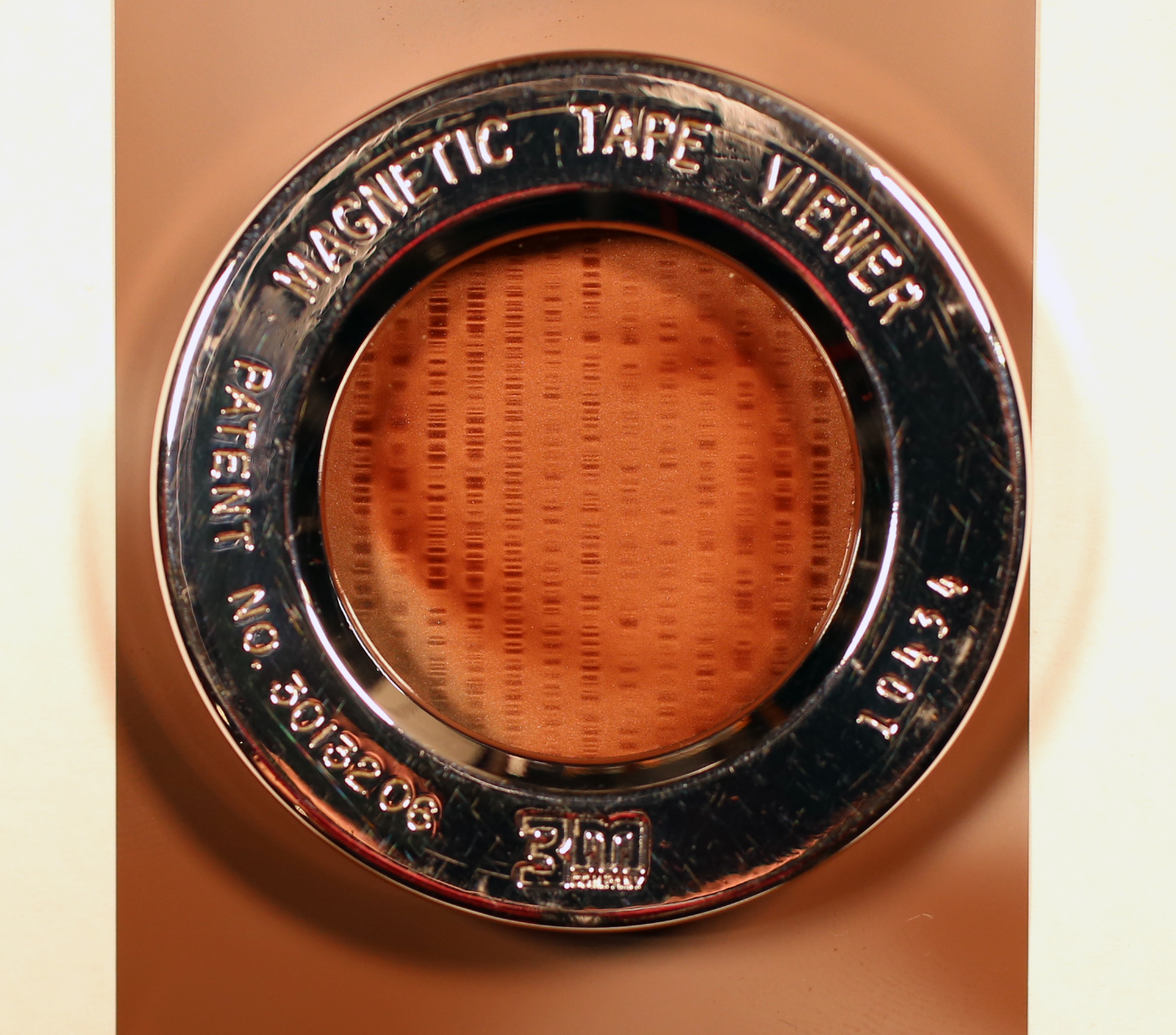

2” 24-track

Other Tape Formats

Cassette, consumer ¼” stereo, ¼” 4-track multi-track, ½” 8-track, ½” 16 track, and  1” 16 track



Common Tape Sync Formats

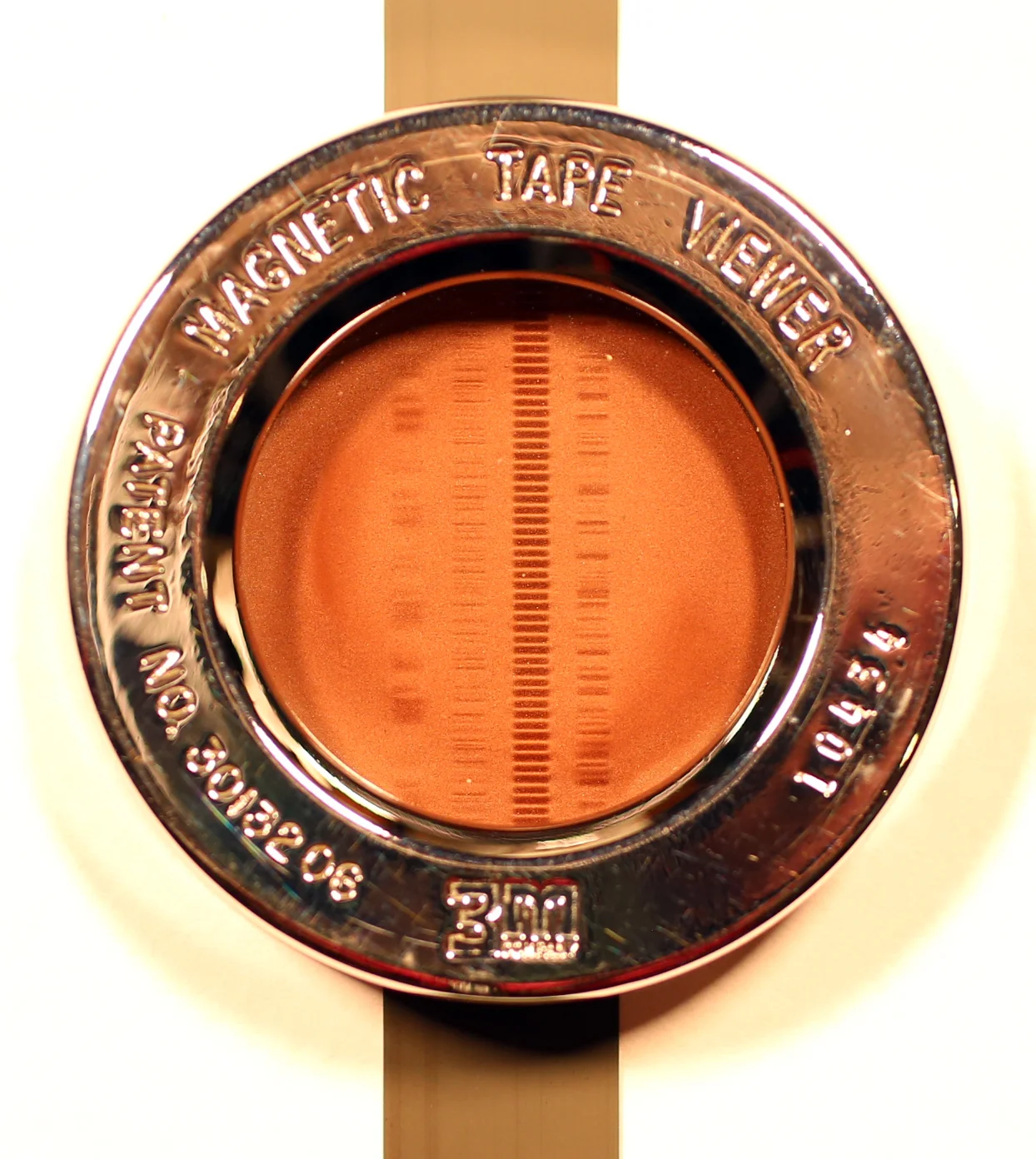

Rangertone (shown on 1/2" 3-track)

Rangertone
(shown on 1/2" 3-track)

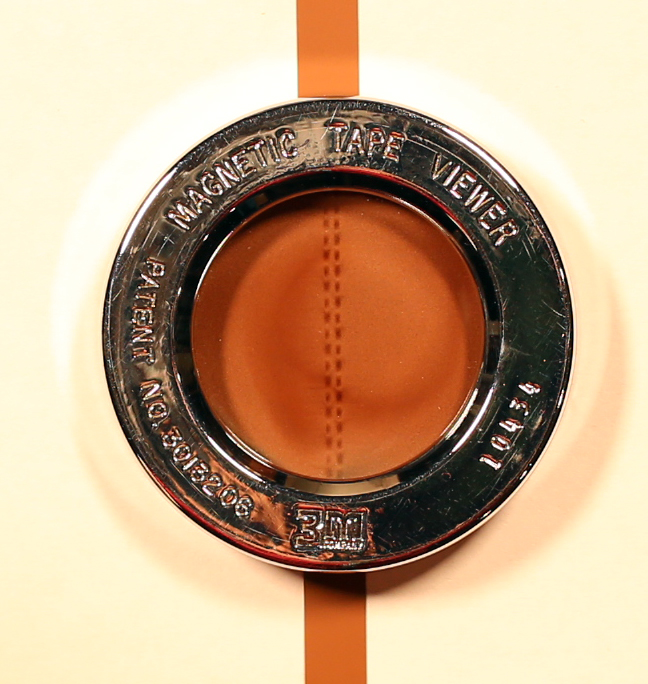

Neo-pilot
(shown without audio)

Center-track time code (note repeating timecode "word" in center)

Center-track time code
(note repeating timecode "word" in center)

Fairchild AM
(14kHz tone with audio is invisible to viewer)

Pilot or timecode on audio track (image of timecode on track 4 of 1/2" 4-track tape)

Nagra FM sync (13.5kHz center-track tone invisible to viewer)

Nagra FM sync
(13.5kHz center-track tone invisible to viewer)
